Segmented Grinding Wheels

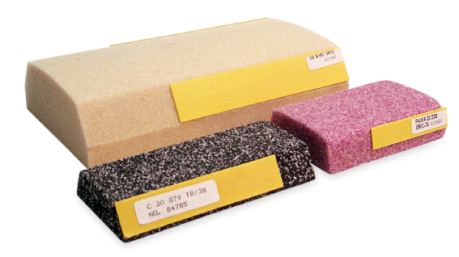

Segments used on rotary table grinding machines.
The face of the wheel (segment, cylinder, cup) does the grinding.
The workpiece is on a reciprocating or rotary table
Recommended Specifications: | Steel < 55Hrc | WA36G10V |
| Steel > 55Hrc | AZ36D12V |
| Stainless Steel | WA36I8V |
Stainless Steel
(soft) 300 series | AZ36D12V |
Stainless Steel
(hard) 400 series | AZ46D12V |
| Nickel Alloys | AS336D13V |
| HSS & Tool Steel | GC36H8V |
| Type ST | | | Type TR | |
| Type | Dimensions (mm) LxBxC | Type | Dimensions (mm) LxBxC |
| ST-1 | 210x120x30 | TR-36 | 100x43/38x20 |
| ST-2 | 150x80x30 | TR-37 | 70x65/57x20 |
| ST-30 | 150x90x35 | TR-38 | 125x64/45x20 |
| ST-31 | 150x80x25 | TR-39 | 150x70/64x25 |
| ST-32 | 150x60x25 | TR-85 | 150x60/55x22 |
| ST-33 | 100x50x16 | |
| ST-34 | 100x50x12 | |
| ST-35 | 150x90x30 | |
| ST-92 | 90x70x21 | |
| | | |
| Type OR/B | | Type OR/C | |
| Type | Dimensions (mm) LxBxC | Type | Dimensions (mm) LxBxC |
| OR/B-12 | 203x118/78x45 | OR/C-14 | 203x103/83x38 |
| OR/C-71
| 150x103/83x38
|
| OR/C-72 | 150x60/50x22 |
| OR/C-73 | 127x90/70x30 |
| OR/C-74 | 100x66/57x25 |
| OR/C-88 | 70x60/55x18 |
| |
| Type OR/E | | Type OR/F | |
| Type | Dimensions (mm) LxBxC | Type | Dimensions (mm) LxBxC |
| OR/E-15 | 150x118/78x44 | OR/F-16 | 150x118/94x44 |
| OR/E-89 | 150x56/9x28 | |
| |
| Type OR/G | | Type IR/H | |
| Type | Dimensions (mm) LxBxC | Type | Dimensions (mm) LxBxC |
| OR/G-11 | 203x150x48 | OR/H-86 | 100x65/61x18 |
| OR/G-13 | 286x146x62
| |
| OR/G-13 (L) | 286x203x62 |
| |
| Type IR/A | | Type IR/C | |
| Type | Dimensions (mm) LxBxC | Type | Dimensions (mm) LxBxC |
| IR/A-22 | 150x76/61x18 | IR/C-24 | 150x112/90x36 |
| IR/A-23 | 200x115/90x26 | IR/C-53 | 100x55/46x20 |
| IR/A-46 | 150x73/38x27 | IR/C-80 | 80x51/45x15 |
| IR/A-52 | 120x95/72x25 | IR/C-81 | 100x84/74x21 |
| IR/A-54 | 150x97/72x25 | IR/C-82 | 100x50/45x20 |
| IR/A-55 | 150x75/50x25 | IR/C-83 | 110x51/45x15 |
| IR/A-82 | 80x60/45x21 | IR/C-84 | 55x51/45x15 |
| IR/A-87 | 69/63x37/26x26 | |
| |
| Type IR/D | | Type IR/E | |
| Type | Dimensions (mm) LxBxC | Type | Dimensions (mm) LxBxC |
| IR/D-51 | 80x80/70x20 | IR/E-20 | 155x127/105x37 |
| | IR/E-21 | 182x120/114x30 |
| |
| Type IR/G | |
| Type | Dimensions (mm) LxBxC |
| IR/G-25 | 50x50/50x15 |
