Wheels for Gear Grinding

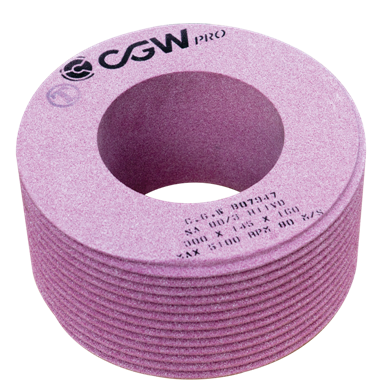

Continuous Worm Grinding
The latest generation of high-performance ceramic abrasives composition developed by CGW
for the Worm Grinding application. The open-structure, highly homogenous wheel reduces
temperature allowing cooler operation, without burning the wheel and work-piece
Operating speed up to 80 M/S • Reduced grinding cycle time • Cool grinding capability
CGW Gear Grinding wheels are available in a wide variety of sizes and grains
• Standard or ceramic grain
• Open or close structure wheel
• Straight or pre-profiled
• For all standard bore sizes
• Up to 635mm diameter size
• For all required thickness for Gear Grinding
Wheels for Gear Grinding (cont.)

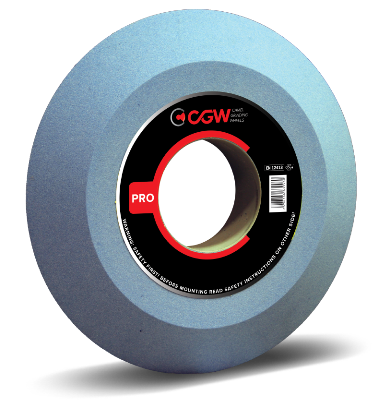

Single Rib Gear Grinding Wheel
The Innovative technology by CGW using high-performance ceramic abrasives with the newdeveloped bonding system was especially designed for the Single Rib Grinding application.
The Single Rib Gear Grinding uses a flexible technique where each tooth flank is ground individually.
The open-structure wheel ensures maximum safety against burning:
• Operating speed up to 50 M/S
• High stock removal rate
• Excellent in form holding
Standard Wheel Types:
A new designed product representing a special grain combination that result in an excellent
shape holding with good self-sharpening, enabling the maximum stock removal rate.
